Wafer_Jar
Product Details
The upper and lower cover is designed to make it easy for the operator to open it, while ensuring that it will not come out during transportation.
Foam and isolation sheet packing is adopted in the box to improve the anti-shock capability of the product and provide effective protection for the wafer transportation.
It can effectively reduce the overall weight while optimizing the product design.
Provide Ultra Clean PP and Antistatic PP materials for customer.

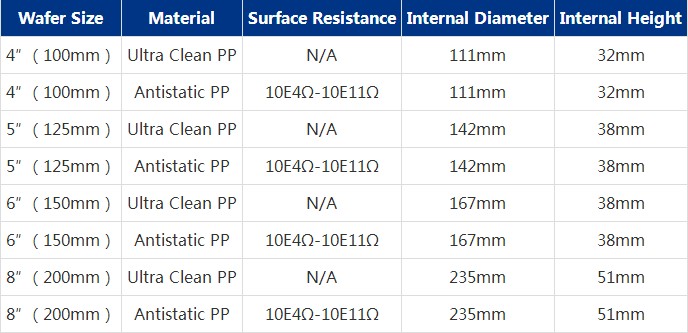

| Wafer Size | Material | Surface Resistance | Internal Diameter | Internal Height |
| 4″ （100mm） | Ultra Clean PP | N/A | 111mm | 32mm |
| 4″ （100mm） | Antistatic PP | 10E4Ω-10E11Ω | 111mm | 32mm |
| 5″ （125mm） | Ultra Clean PP | N/A | 142mm | 38mm |
| 5″ （125mm） | Antistatic PP | 10E4Ω-10E11Ω | 142mm | 38mm |
| 6″ （150mm） | Ultra Clean PP | N/A | 167mm | 38mm |
| 6″ （150mm） | Antistatic PP | 10E4Ω-10E11Ω | 167mm | 38mm |
| 8″ （200mm） | Ultra Clean PP | N/A | 235mm | 51mm |
| 8″ （200mm） | Antistatic PP | 10E4Ω-10E11Ω | 235mm | 51mm |
